The 28m Flume Ride is a fixed water coaster with a 27.4m track height and 20-person boats. It suits theme parks and water parks seeking a high-capacity, thrilling water ride.
Figures below are the design values for this model. Site-specific engineering is confirmed per project.

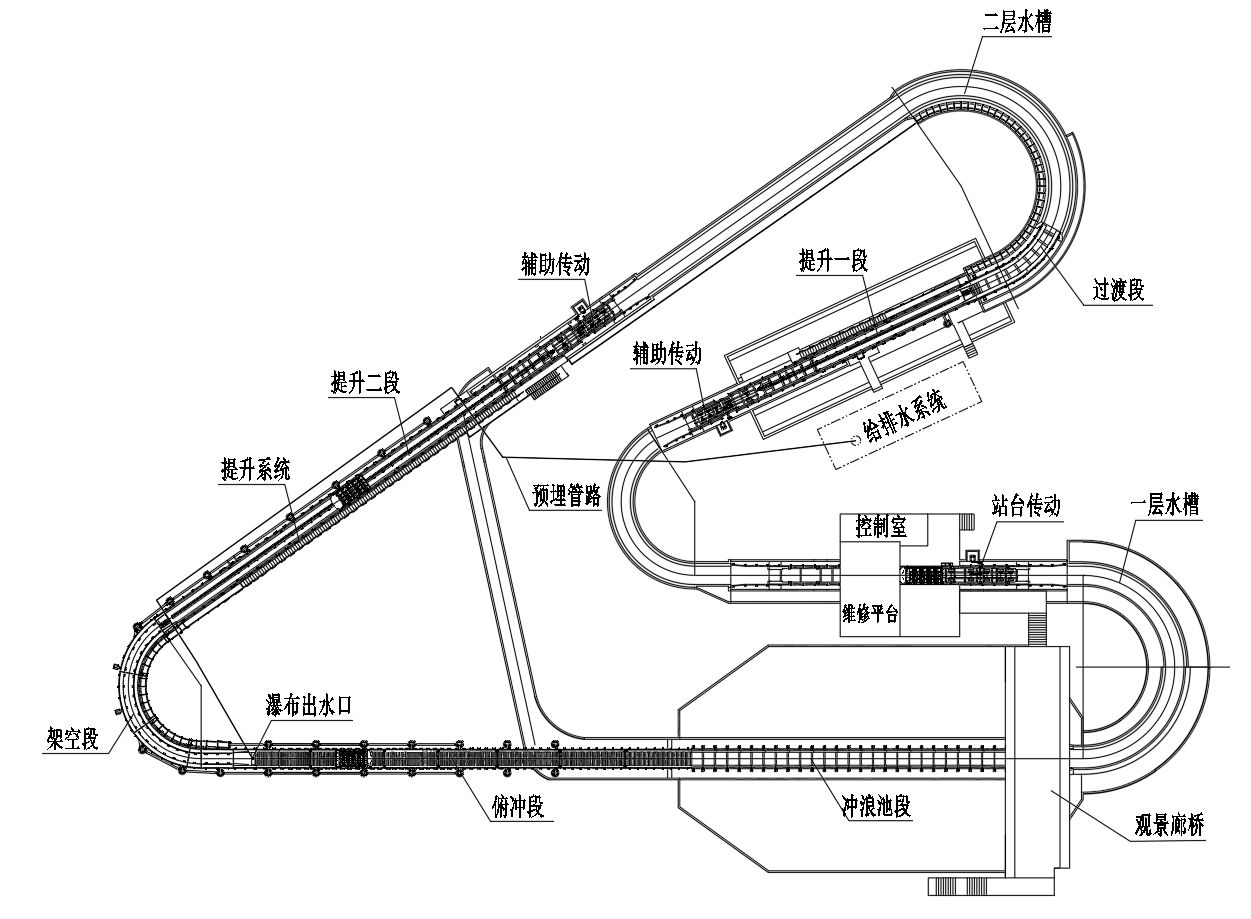

The 28m Flume Ride is a fixed water coaster designed for theme parks and water parks. It combines a lift hill, elevated track, and a splashdown into a water channel. The ride accommodates 20 passengers per boat and runs for approximately 4.5 minutes per cycle. It is designed to the standards required by your market, confirmed per project.
The ride features a track height of 27.4m and a lift speed of 1.1m/s. The installed power is 517kVA, and the power supply is 3N+PE 380V/220V 50Hz. The design service life is 20 years for the structure and 10 years for the boats. The ride system uses three boats operating simultaneously, with photoelectric sensors and interlocked controls to manage boat spacing and prevent collisions. Safety interlocks include lift chain tension, water level, and pneumatic pressure monitoring.
The ride requires a footprint of 145×101 (unit). Installation is fixed, and the site must be prepared according to the foundation plan provided. The ride is designed to the standards required by your market, confirmed per project. Adequate power supply and water management systems are necessary for operation. Our team provides installation guidance and documentation to support your local engineering team.
Daily inspections should include checking the lift chain tension, water level, and pneumatic system pressure. The ride is equipped with an emergency evacuation plan that includes rescue ladders and trained staff. Operators must ensure that all safety restraints are properly closed and locked before dispatch. The control system includes multiple interlock checks to ensure safe operation. Regular maintenance according to the maintenance manual is essential to achieve the design service life.
The questions park developers ask most about this ride — answered without the sales language.
The track height is 27.4m. This is the highest point of the ride's track, providing a steep descent and a thrilling splashdown experience.

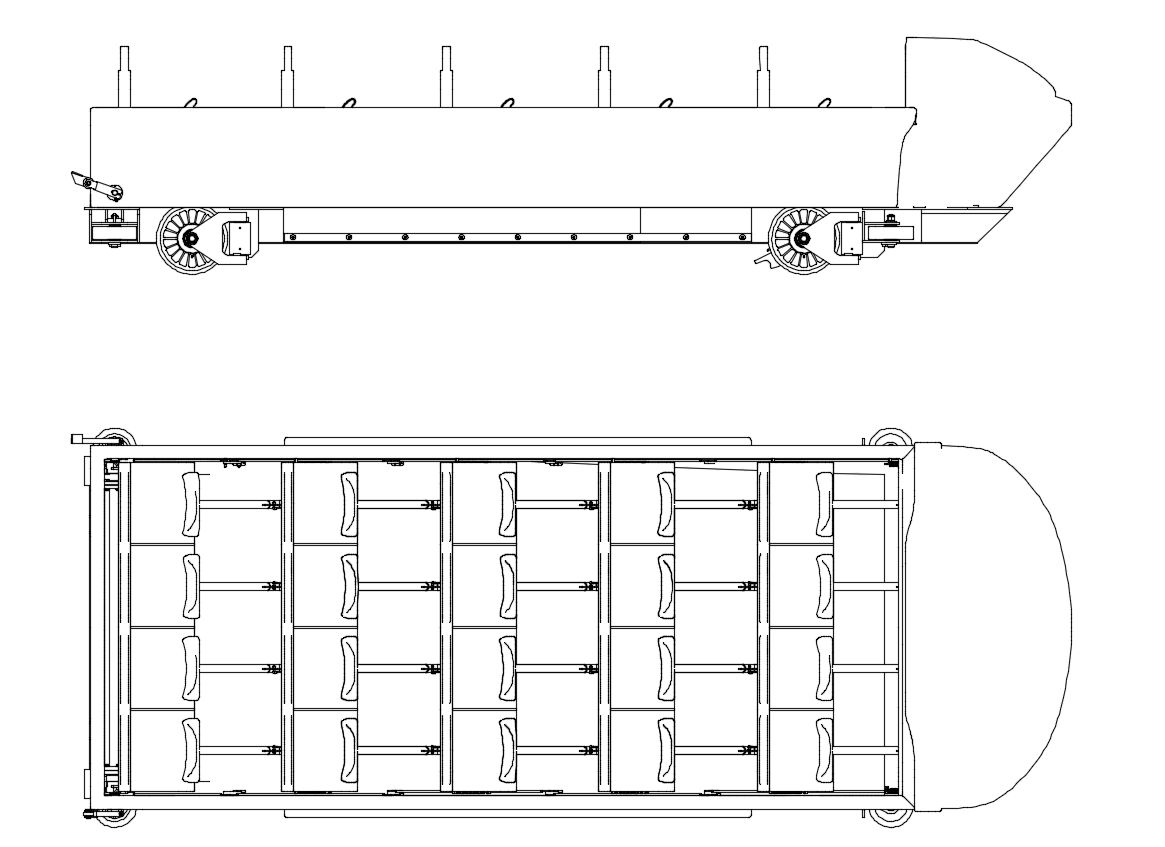

Each boat carries 20 passengers. The ride operates with three boats simultaneously, allowing for efficient throughput and shorter queues.
The ride requires a power supply of 3N+PE 380V/220V 50Hz and has an installed power capacity of 517kVA. Ensure your site can provide this before installation.
Tell us about your project. Our engineering team will respond within 24 hours.
The same factory, quality process and certification documents stand behind every ride below — reviewed once here rather than repeated on each product page.
Design basis agreed against the standards your market requires, confirmed per project
Structure designed for a 20-year service life, stated in the contract for each project
Rigorous non-destructive testing at every production stage
Advanced surface treatment for extreme environments
Lightweight yet high-strength for wind resistance
Faster installation with premium visual finish
Integrated emergency release system for minimal downtime
Iconic skyline-defining structures
Maximum revenue efficiency with large cabin capacity
Thermostatic cabins for year-round comfortable riding
Multi-motor configuration for fault tolerance
Space-efficient layout for flexible site integration
Every ZhipaoRides product is engineered with redundant, fail-safe systems that meet or exceed international amusement ride safety standards. From electrical interlocks to structural redundancy, we leave nothing to chance.
Forced electrical interlocking prevents any unauthorized or unsafe startup. The system requires all safety conditions to be met before operation can begin, eliminating human-error risks.
Three independent door opening safeguards — mechanical lock, electrical sensor, and control system verification — eliminate passenger entrapment risk under all operating conditions.
Dual independent braking mechanisms with fail-safe engagement ensure controlled deceleration even in the event of primary system failure, meeting Class A ride standards.
Continuous sensor-based monitoring of vibration, temperature, and load distribution provides instant anomaly detection and automatic shutdown when parameters exceed safe thresholds.
Integrated auxiliary drive and manual release mechanisms enable safe passenger evacuation from any position, including during power outages or extreme weather conditions.
Non-destructive testing at every production stage — from raw material to final assembly — ensures structural integrity backed by 25-year design life certification.
Our safety systems undergo rigorous third-party testing and certification to meet or exceed GB 8408 (Chinese national standard) and EN 13814 (European standard) requirements. Each ride is equipped with multiple redundant safety mechanisms, ensuring passenger protection at all times. From the factory floor to the final installation site, our engineering team conducts comprehensive safety audits, load tests, and operational simulations before any ride enters service.
