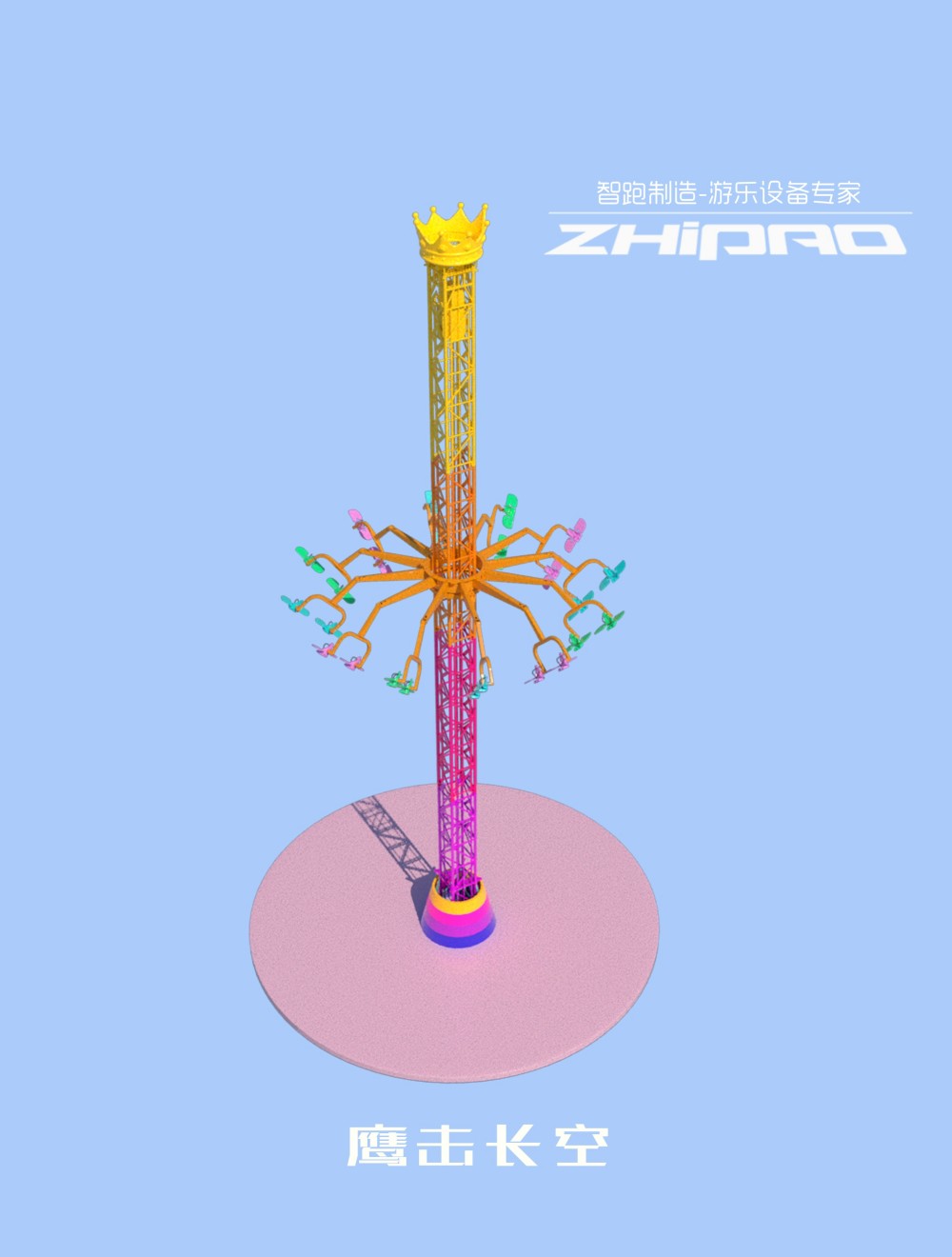

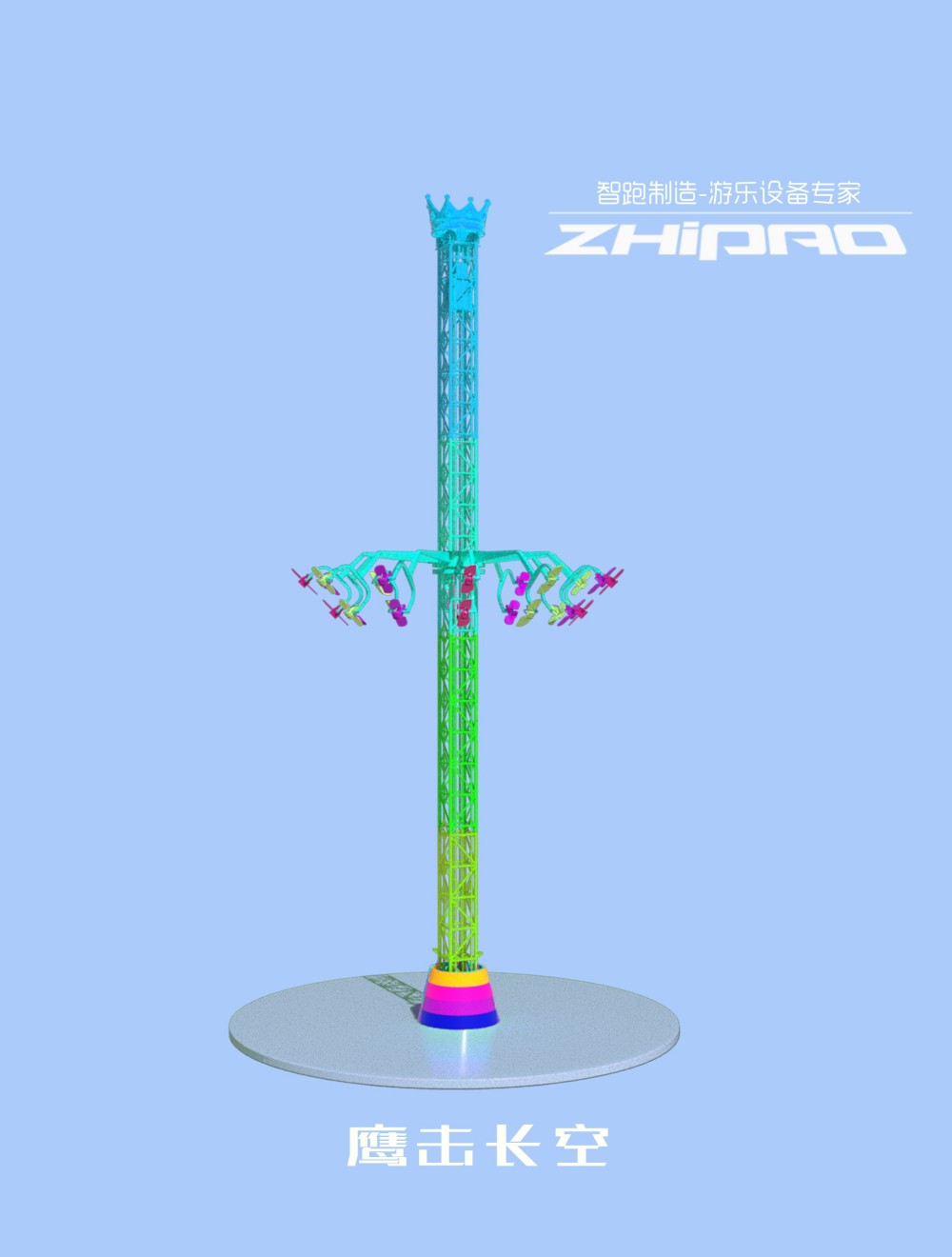

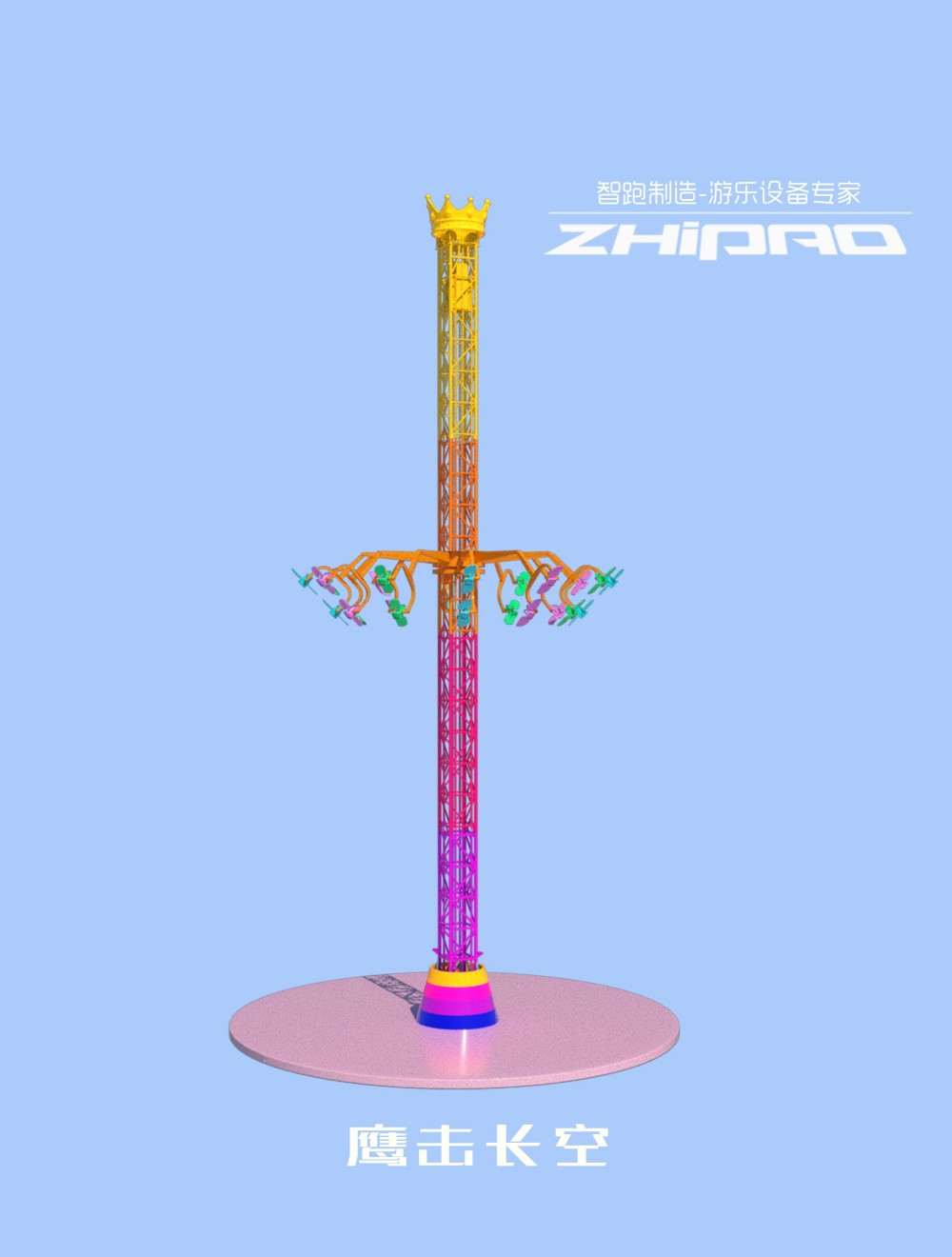

The Sky Eagle is a 40m drop tower ride with 24 seats and a 26m run height. It suits parks and investors seeking a high-capacity thrill attraction with a compact footprint.
Figures below are the design values for this model. Site-specific engineering is confirmed per project.
The Sky Eagle is a drop tower ride in the flying tower rotating swing series. It combines vertical motion with rotation to create a dynamic experience for riders. With 24 seats and a 180-second run cycle, it is designed for parks that need to move guests efficiently while offering a high-thrill attraction.
The ride reaches an equipment height of 40 m and a run height of 26 m. The rotating section has a swing diameter of 16.6 m and an expanded diameter of 21 m. Cabins rotate at 10 rpm and can swing to a maximum angle of 41.2°, adding a swinging motion to the drop. The lifting speed is 0.5 m/s, providing a controlled ascent before the drop. The installed capacity is 98 kVA, and the power supply is 3N+PE 380V/220V 50Hz.
All engineering details are designed to the standards required by your market, confirmed per project.
The Sky Eagle requires a footprint that accommodates the 21 m expanded diameter. The equipment height of 40 m should be considered for clearance and visibility. Installation follows the project-specific foundation and assembly requirements. Power supply must match the specified 3N+PE 380V/220V 50Hz. Site planning should account for queue lines, access paths, and safety zones as per local regulations.
Each cycle lasts 180 seconds, including loading and unloading. With 24 seats, the ride can accommodate groups efficiently. Operators should follow the loading procedures and safety checks outlined in the operations manual. The ride's rotation and swing motions require guests to secure loose items. Regular maintenance and inspections are essential to ensure continued safe operation. Training for staff is provided as part of the project delivery.
The questions park developers ask most about this ride — answered without the sales language.
The Sky Eagle has 24 seats, so it can carry up to 24 riders per cycle. The run cycle is 180 seconds, including loading and unloading. This capacity suits parks with moderate to high guest flow.
The installed capacity is 98 kVA, and the power supply is 3N+PE 380V/220V 50Hz. Ensure your site's electrical infrastructure meets these specifications. Confirm with local authorities for any additional requirements.
The ride has an expanded diameter of 21 m and an equipment height of 40 m. The swing diameter is 16.6 m. Plan for a footprint that accommodates these dimensions plus safety zones and queue areas as per local regulations.
Tell us about your project. Our engineering team will respond within 24 hours.
The same factory, quality process and certification documents stand behind every ride below — reviewed once here rather than repeated on each product page.
Design basis agreed against the standards your market requires, confirmed per project
Structure designed for a 20-year service life, stated in the contract for each project
Rigorous non-destructive testing at every production stage
Advanced surface treatment for extreme environments
Lightweight yet high-strength for wind resistance
Faster installation with premium visual finish
Integrated emergency release system for minimal downtime
Iconic skyline-defining structures
Maximum revenue efficiency with large cabin capacity
Thermostatic cabins for year-round comfortable riding
Multi-motor configuration for fault tolerance
Space-efficient layout for flexible site integration
Every ZhipaoRides product is engineered with redundant, fail-safe systems that meet or exceed international amusement ride safety standards. From electrical interlocks to structural redundancy, we leave nothing to chance.
Forced electrical interlocking prevents any unauthorized or unsafe startup. The system requires all safety conditions to be met before operation can begin, eliminating human-error risks.
Three independent door opening safeguards — mechanical lock, electrical sensor, and control system verification — eliminate passenger entrapment risk under all operating conditions.
Dual independent braking mechanisms with fail-safe engagement ensure controlled deceleration even in the event of primary system failure, meeting Class A ride standards.
Continuous sensor-based monitoring of vibration, temperature, and load distribution provides instant anomaly detection and automatic shutdown when parameters exceed safe thresholds.
Integrated auxiliary drive and manual release mechanisms enable safe passenger evacuation from any position, including during power outages or extreme weather conditions.
Non-destructive testing at every production stage — from raw material to final assembly — ensures structural integrity backed by 25-year design life certification.
Our safety systems undergo rigorous third-party testing and certification to meet or exceed GB 8408 (Chinese national standard) and EN 13814 (European standard) requirements. Each ride is equipped with multiple redundant safety mechanisms, ensuring passenger protection at all times. From the factory floor to the final installation site, our engineering team conducts comprehensive safety audits, load tests, and operational simulations before any ride enters service.
